GPS trackers

FCT NX

FCT NX is a compact vehicle tracking solution with reliable 4G-2G connectivity, real-time alerts, and remote vehicle control capabilities.

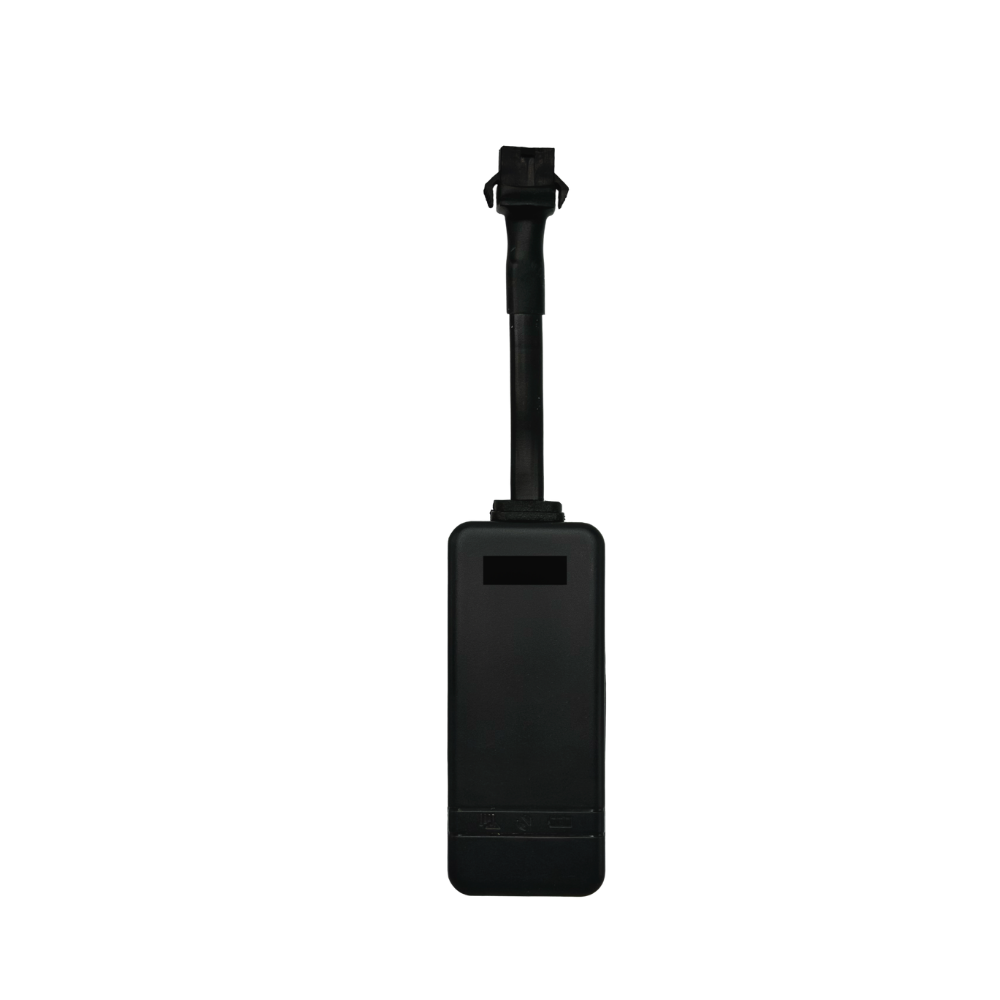

FCT NX front

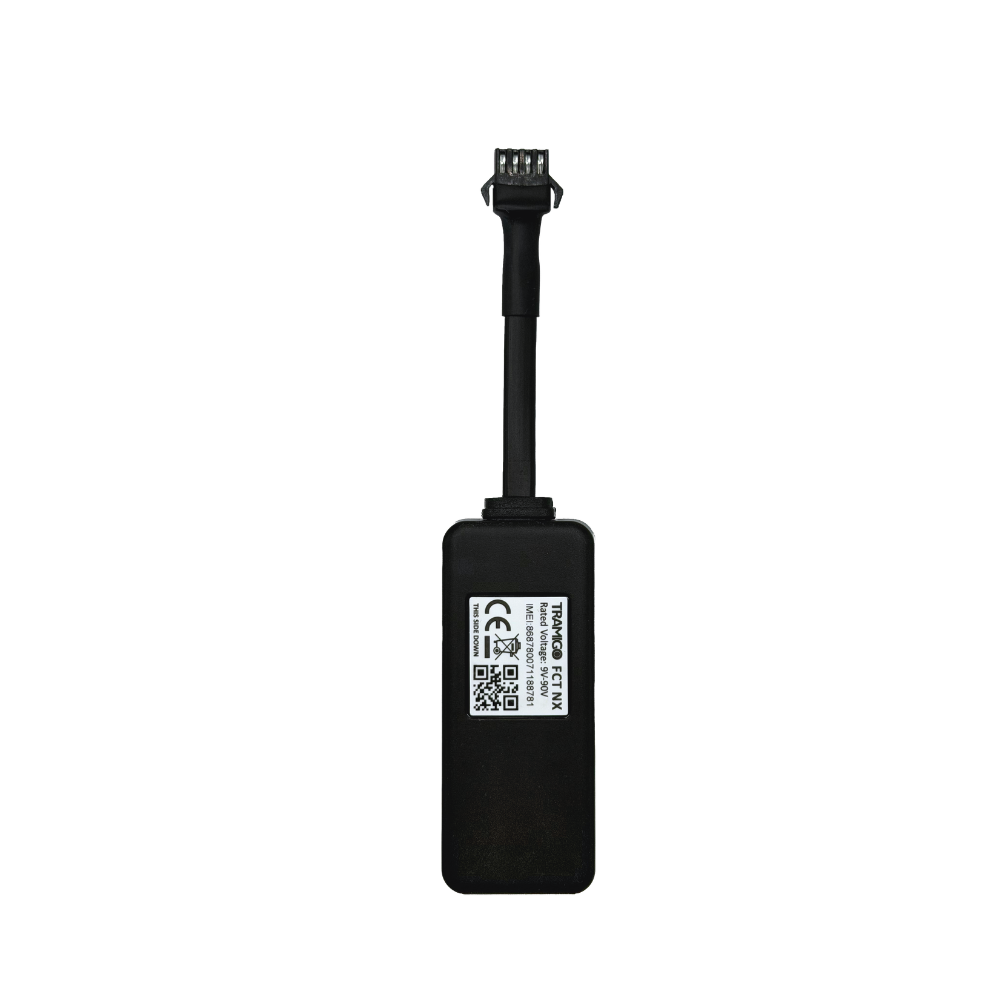

FCT NX back
Download PDF

Key Features

Precise live tracking
Geo-fence alarm alerts
Remote immobilization support
Driving behavior insights
Shock / motion alarms
4G with 2G fallback
Multi-network connectivity
Supports 9–90V vehicles

Item Details

Hardware Specifications

Physical Specification

  • Dimensions: 74 (L) × 31 (W) × 13 (H) mm

Sensitivity

  • Tracking Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm

Power

  • Input Voltage: 9–90 V DC
  • Battery: 55 mAh / 3.7 V Li-Polymer battery

Temperature

Operating Environment

  • Operating Temperature: −20 °C to +70 °C

Interfaces

Interface

  • Indication: GPS (Blue), GSM (Green), Power (Red)

Physical Specification

  • Dimensions: 74 (L) × 31 (W) × 13 (H) mm

Sensitivity

  • Tracking Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm

Power

  • Input Voltage: 9–90 V DC
  • Battery: 55 mAh / 3.7 V Li-Polymer battery

GNSS

  • GNSS Frequency: BDS B1: 1561.098 MHz; GPS L1: 1575.42 MHz
  • Positioning Accuracy: < 2.5 m (CEP50)
  • TTFF (Open sky): Avg. hot start ≤ 3 seconds; Avg. cold start ≤ 32 seconds

Cellular

  • Technology: 4G + 2G
  • 4G bands (FDD): B1 / B3 / B5 / B7 / B8 / B20 / B28
  • 4G bands (TDD): B34 / B38 / B39 / B40 / B41
  • 2G bands: GSM 850 / 900 / 1800 / 1900 MHz

Interface

Indication: GPS (Blue), GSM (Green), Power (Red)

Operating Environment

Operating Temperature: −20 °C to +70 °C

Fleet Management

Perferendis facilis consectetur sed at perferendis facilis sed vitae.

Vehicle Tracking

Perferendis facilis consectetur sed at perferendis facilis sed vitae.

Asset Tracking

Perferendis facilis consectetur sed at perferendis facilis sed vitae.
